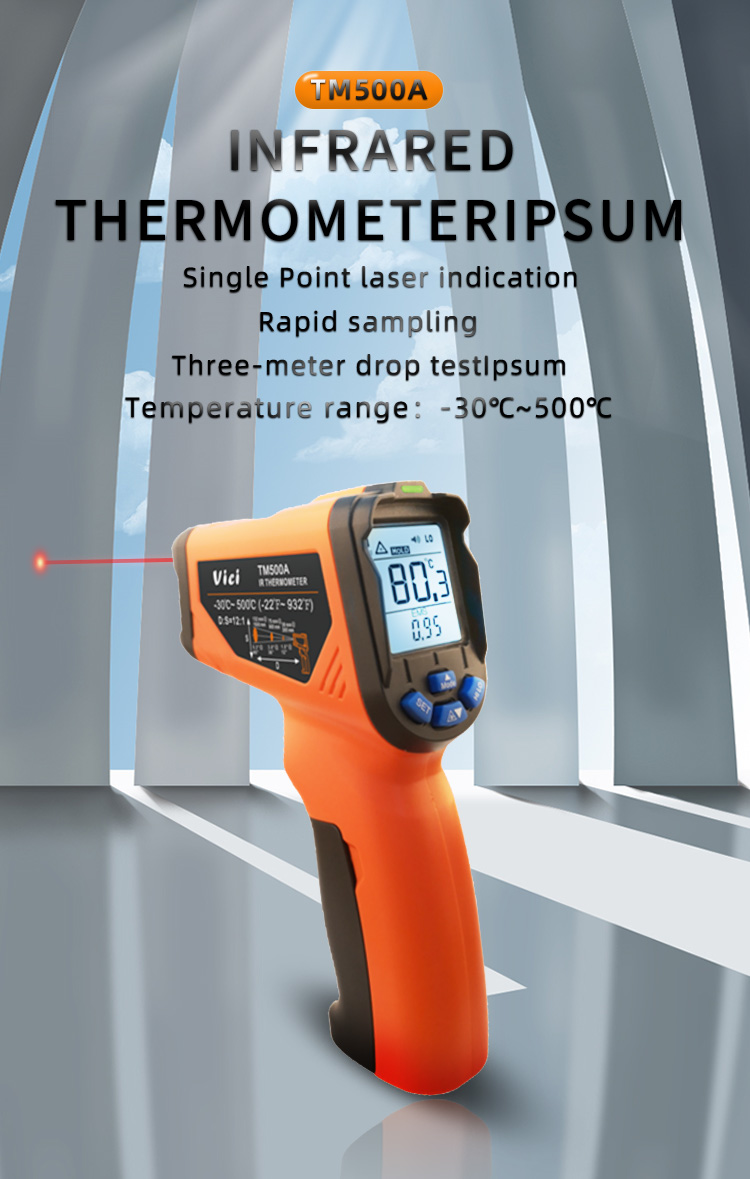

TM500A Max 500℃ Infrared thermometer, 12:1 D:S, Adjustable 0.1 to 1.0 emissivity, High/Low temperature alarm function, Max/Min/Average/Difference.
TM500A infrared thermometer, accurately measure the fixed point temperature of dangerous scenes or unreachable objects from a distance. It can measure water temperature, oil temperature, kitchen baking, boiler, smelting, kiln and other temperatures; testing range is -30℃ to 500℃ | -22℉ to 932℉
Technical Data:
|
Basic info |
Celsius |
Fahrenheit |
|
Temperature range |
-30℃～500℃ |
-22℉ ~ 932℉ |
|
Accuracy |
Geometric Correction |
||
|
＜ 400℃ |
＞400℃ |
||
|
Response Time |
95% reading |
＜500ms |
＜300ms |
|
Ambient Temperature 23℃±2℃ |
≥0℃ / ≥32℉ |
±1.5℃ or reading±5% (±3℉ or reading±5%) take large value) |
±1℃ or reading±5% (±2℉ or reading±5%) take large value |
|
＜-10℃ /＜14℉） |
±3℃ / ±6℉ |
||
|
-10℃~0℃ / 14℉~32℉ |
±2℃ / ±4℉ |
||
Special Function:
|
Protection level (IP) |
According to IEC 60529, the protection level is IP54 |
|
Drop test |
3 meters |
|
Vibrationand Shock protecion |
IEC 60068-2-6，2.5g, 10 to 200Hz, IEC 60068-2-27, 50g |
|
Laser safety |
11mEN 61325-1:2006 |
|
Measuring distance |
D:S=12:1 (measuring distance to target object) |
|
Measuring condition |
Vacuum medium |
|
Spectral response |
8 to 14 Micron |
|
Emissivity |
0.10 to 1.00 adjustable |
|
Temperature coeffcient |
±0.1℃/℉ or ±0.1% of reading, whichever is larger |
|
Optical resolution |
12:1 (when energy is 95% calculate ) |
|
Display resolution |
0.1℃ / 0.2℉ |
|
Repeatability (reading %) |
Reading ±0.8% or 1.0℃/2， take the larger value |
|
Auto power off time |
approx. 6s |
|
Sampling rate |
≤ 0.5s |
|
Backlight display function |
√ |
|
Low battery indication |
√ |
|
Data hold function |
√ |
|
Max./Min./AVG./DIF. HOLD function |
√ |
|
High/Lowtemperature Alarm function |
√ |
|
Zero offset adjustment |
√ |
|
Unit Symbol display |
√ |
|
Max. display |
3digits |
|
Power supply |
6F22, 9V (extra heavy battery) |
|
Battery life |
10 hours when the laser and backlight are on. |
|
Power consumption |
≤50mW |
| Meter weight | 177g (with battery) |
| Meter size | 95x43x155mm |
