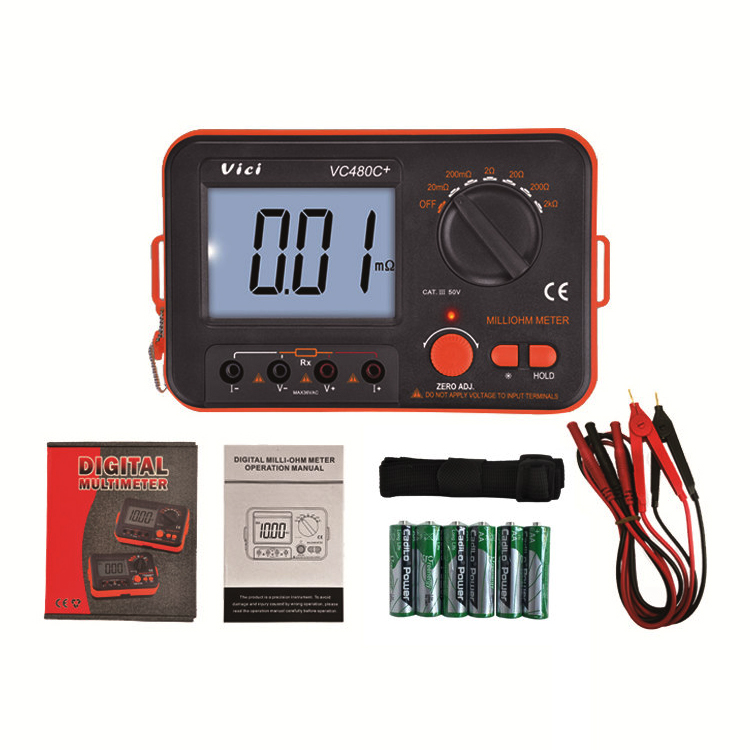

VC480C+ Low Resistance Tester, 4 wires testing, Large 0.01m ohm to 2k ohm range, Accurately measure the contact resistance of conductors, electric heating elements and welding points.

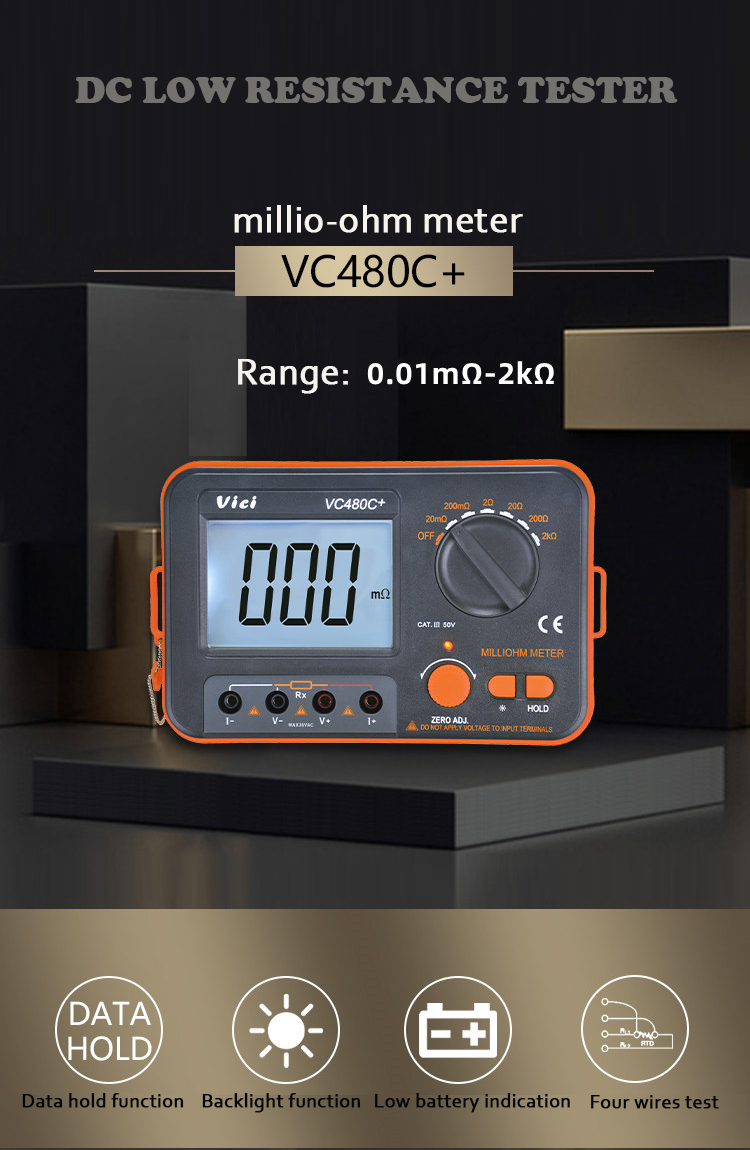

VC480C+ microohm (low resistance) tester, adopts four-wire measurement, which effectively subtracts the line resistance of the test line itself to ensure the measurement accuracy. It can test the short-wave nvis antenna resistance test, the voltage equalization ring welding of the building curtain wall lightning protection device, the reliability test of the high-voltage wire erection, the heating components, the wire resistance and the conductor connection resistance of various trains, EMUs and equipment.
2000 digits display
2000 digits display
Technical Data:
|
Range |
Accuracy |
Resolution |
Measuring current |
|
20 mΩ |
±(0.5%rdg+3) |
0.01 mΩ |
Approx.100mA |
|
±(0.5%rdg+3) |
0.1 mΩ |
Approx.50mA |
|
|
1 mΩ |
|||
|
1 0mΩ |
|||
|
1 00mΩ |
|||
|
1Ω |
Special Function:
|
Model |
VC |
|
Low battery indication |
Less than approx.7.5V |
|
Function protection |
√ |
|
Sampling rate |
3 times/sec. |
|
Operation mode |
Manual range |
|
Max.display |
1999 |
|
LCD size |
75× |
|
Power source |
1.5V AAA battery x6pcs, or external DC 9V power source |
|
Power consumption |
Quiescent current approx.50mA |
