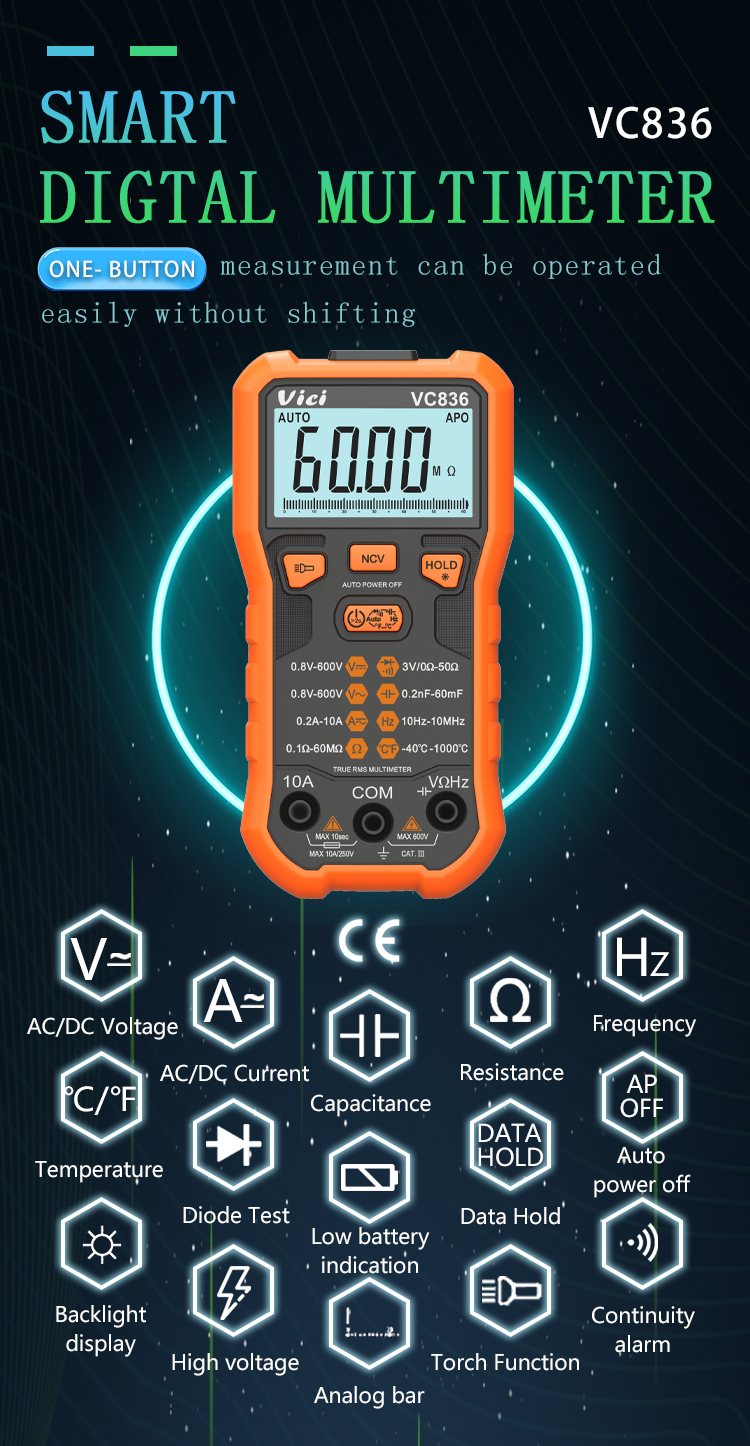

VC836 Intelligent True RMS, NCV tests, Analog bar display, Data hold, Backlight, Torch lighting function.
VC836 multimeter, automatically tests DC voltage, AC voltage, AC current, AC current, Resistance, Capacitance, Frequency, Non-contact voltage (NCV) detecting, Duty-cycle, Temperature, Diode and Continuity; Designed with unit symbol, torch lighting, data hold, analog bar display, backlight display, auto ranging switch, auto power and alarm functions.
6000 digits display
6000 digits display
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
6V/60V |
±(0.5%+4) |
|
600V |
±(1.0%+4) |
|
|
ACV |
6V/ 60V |
±(0.8%+6) |
|
600V |
±(1.0%+6) |
|
|
DCA |
10A |
±(2.0%+5) |
|
ACA |
10A |
±(2.0%+10) |
|
Resistance |
600Ω |
±(0.8%+5) |
|
6kΩ/ 60kΩ/ 600kΩ/ 6MΩ |
±(0.8%+1) |
|
|
60MΩ |
±(1.2%+5) |
|
|
Capacitance |
60nF |
±(2.5%+6) |
|
600nF/ 6uF/ 60uF |
±(2.5%+5) |
|
|
600uF/ 6mF/ 60mF |
±(5.0%+8) |
|
|
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/10MHz |
±(0.5%+4) |
|
Temperature |
-40℃～1000℃ |
＜400℃ ±(1.0%+5) |
|
≥400℃ ±(1.5%+15) |
||
|
-40℉～ |
＜750℉ ±(1.0%+5) |
|
|
≥750℉ ±(1.5%+15) |
Specific Function:
| Model | VC836 |
|
True RMS |
√ |
|
NCV |
√ |
|
Analog bar display |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Diode test |
√ |
|
Continuity alarm |
Less than 50MΩ |
|
Low battery indicator |
Approx. less than 2.4V |
|
Protect/Shockproof protect function |
√ |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
Max. display |
6000 |
|
LCD size |
61x28mm |
|
Battery |
3V (1.5V AAA x 2) |
|
Power consumption |
Quiescent current about 2mA |
