VC97A Max 4000 digits, True RMS, NCV Tests, Max/Min, Data hold, Backlight.

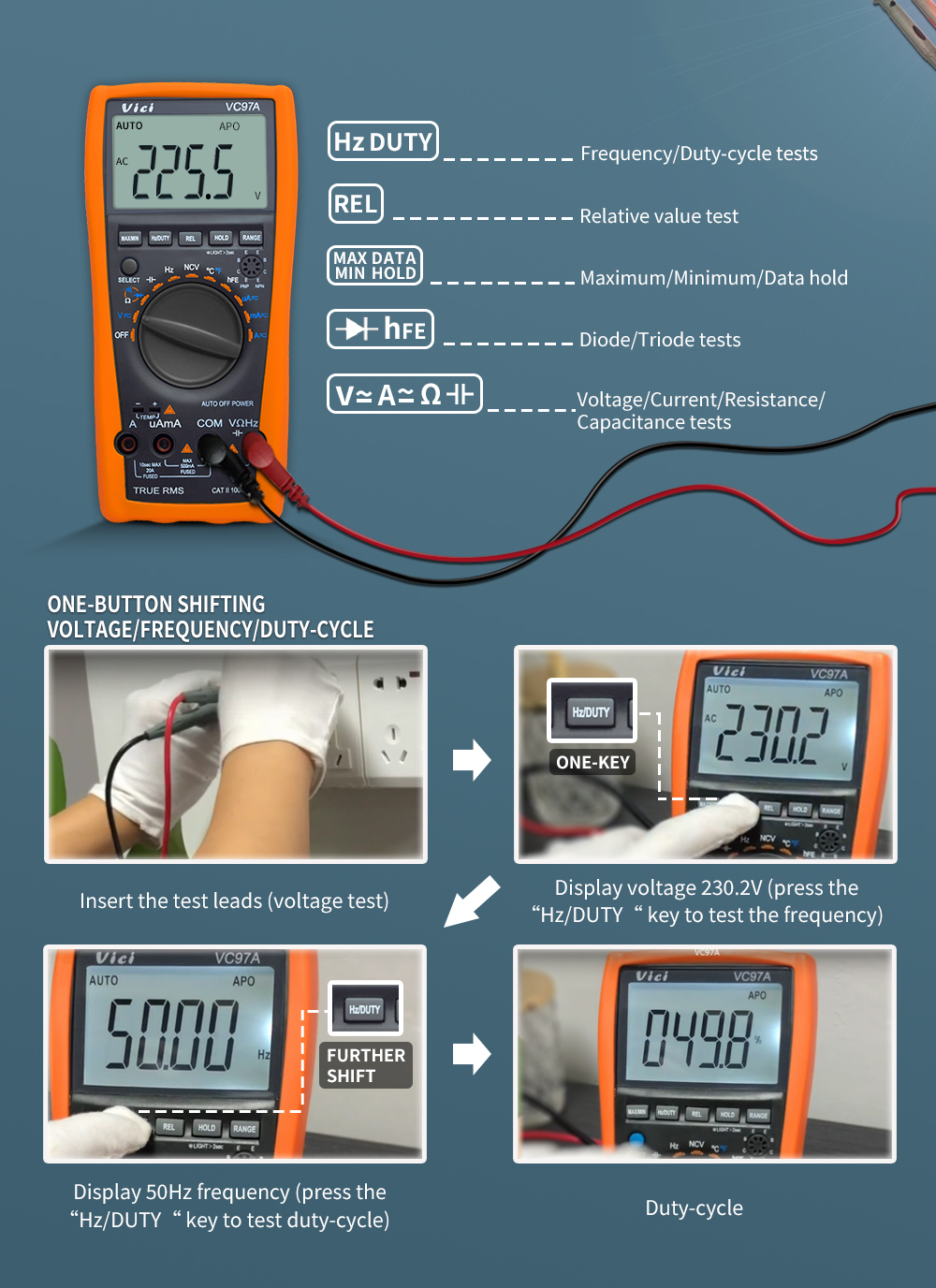

VC97A multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, non-contact voltage detection, duty cycle, temperature, diode and continuity tests; Designed with unit symbol display and maximum and minimum value measurement, data hold, auto ranging switch, auto power off and alarm functions.
4000 digits display
4000 digits display
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
400mV/4V/40V/400V/1000V |
±(0.5%+5) |
|
ACV |
400mV/4V/40V/400V/750V |
±(0.8%+10) |
|
DCA |
400uA/4000uA/40mA/400mA/4A/ |
±(1.0%+5) |
|
ACA |
400uA/4000uA/40mA/400mA/4A/ |
±(1.5%+10) |
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(0.8%+2) |
|
Capacitance |
40nF/400nF/ /4uF/40uF/400uF/4mF/40mF |
±(2.5%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
|
Temperature |
-40℉ ~ 1832℉ |
±(1.0%+5) |
|
-40℃ ～ 1000℃ |
±(1.0%+5) |
Special Function:
|
Model |
VC97A |
|
True RMS |
√ |
|
NCV Function |
√ |
|
Backlight display |
√ |
|
Diode test |
√ |
|
hFE test |
√ |
|
Continuity test |
Approx. less than 50Ω |
|
Low battery indication |
Approx less than 2.4V |
|
Duty cycle measuring |
√ |
|
Data hold |
MAX, MIN, HOLD |
|
Auto power off |
Approx.15minutes |
|
Function protection |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40-2kHz |
|
Operation way |
Manual or auto range |
|
Max. display |
4000 |
|
LCD size |
65x |
|
Battery |
2 X 1.5 AAA |
|
Power consumption |
Quiescent current approx. 2mA |
