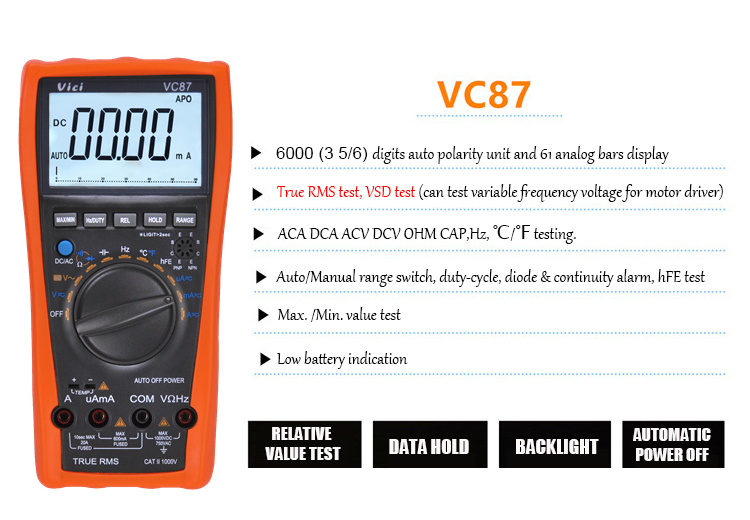

VC87 Non-linear True RMS maximum frequency response 10kHz measurement, Frequency conversion measurement, Analog bar display, Max/Min
VC87 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, duty-cycle, temperature, diode, continuity and VSD measurements; Designed with unit symbol , analog bar and backligjt display, max, min tests, data hold, autor ranging switch, auto power and alarm functions.
6000 digits display
6000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
|
DCV |
600mV/6V/60V/600V/1000V |
±(0.5%+4) |
|
|
ACV (TRMS) |
6V/60V/600V/750V |
±(1.0%+10) |
|
|
VSD-V (TRMS) |
6V/60V/600V/750V |
±(2.0%+10) |
|
|
DCA |
600uA/6000uA/60mA/600mA/ |
±(1.0%+10) |
|
|
ACA (TRMS) |
600uA/6000uA/60mA/600mA/6A//20A |
±(1.2%+20) |
|
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/30 MΩ |
±(0.8%+3) |
|
|
Capacitance |
40nF/ 400nF/4uF/40uF/400uF/2000uF |
±(2.5%+5) |
|
|
Frequency |
10Hz～30MHz |
±(0.5%+4) |
|
|
Temperature |
|
±(0.8%+4) |
|
|
-40℉～ |
±(0.8%+5) |
||
|
|
|
||
|
Feature |
VC87 |
||
|
VSD |
√ |
||
|
True RMS |
√ |
||
|
Diode test |
√ |
||
|
hFE test |
√ |
||
|
Continuity test |
Approx. less than 30Ω |
||
|
Low battery indication |
Approx less than 5.5V |
||
|
Duty cycle measuring |
√ |
||
|
Data hold |
MAX./MIN. HOLD |
||
|
Auto power off |
Approx.15minutes |
||
|
Backlight display |
√ |
||
|
Function protection |
√ |
||
|
Input impendence |
10MΩ |
||
|
Sampling rate |
3times/s |
||
|
AC frequency response |
50-5kHz or 5kHz-20kHz |
||
|
Operation method |
Manual or auto range |
||
|
Max. display |
6000 |
||
|
LCD size |
65x |
||
|
Battery |
9V(6F22) |
||
|
Power consumption |
Quiescent current approx. 4.6mA |
||
