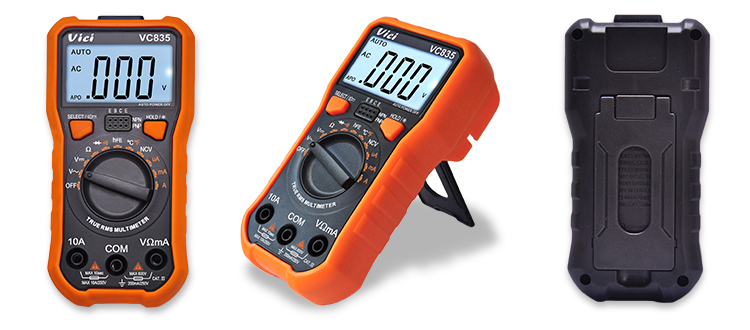

VC835 True RMS, NCV tests, Data hold, Backlight, Torch lighting function.
VC835 multimeter, available to DC voltage, AC voltage, DC current, AC current, resistance, non-contact voltage detecting, temperature, hFE, Diode and continuity tests; Designed with unit symbol, backlight display, data hold, torch lighting, auto range switch, auto power and alrm functions.
1999 digits display
1999 digits display
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
±(0.5%+4) |
|
ACV |
2V/20V/200V/600V |
±(0.8%+6) |
|
DCA |
200uA/2000uA/20mA/200mA/2A |
±(1.0%+5) |
|
ACA |
200uA/2000uA/20mA/200mA/2A |
±(1.5%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.8%+1) |
|
Temperature |
-40℃～1000℃ |
±(1.0%+5) |
Special Function:
|
Model |
VC835 |
|
NCV |
√ |
|
Data hold |
√ |
|
True RMS |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Diode test |
0V~2V, it displays “OL” if over 2V |
|
Continuity alarm |
Less than 50Ω, it displays “OL” if over 10Ω |
|
hFE Test |
0~2000 |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
Max. display |
2000 |
|

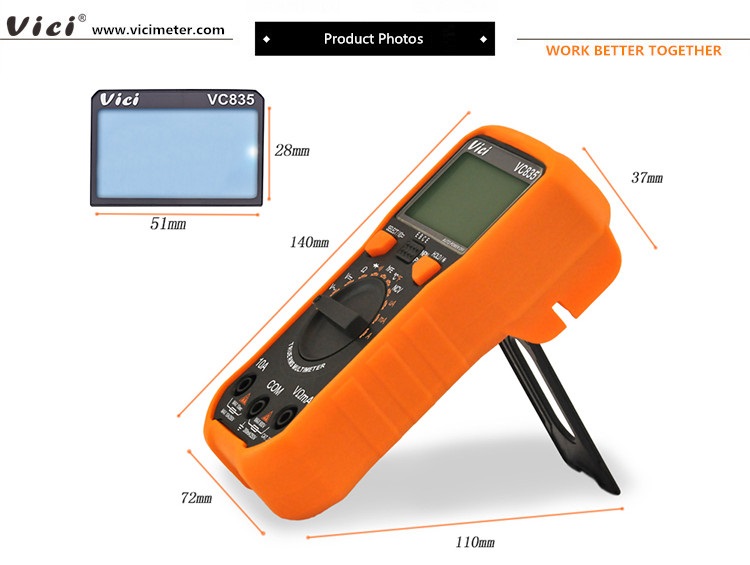

LCD size |
61*28mm |
|
Battery |
3V AAA*2 |
| Power consumption | Quienscent current about 2mA |
