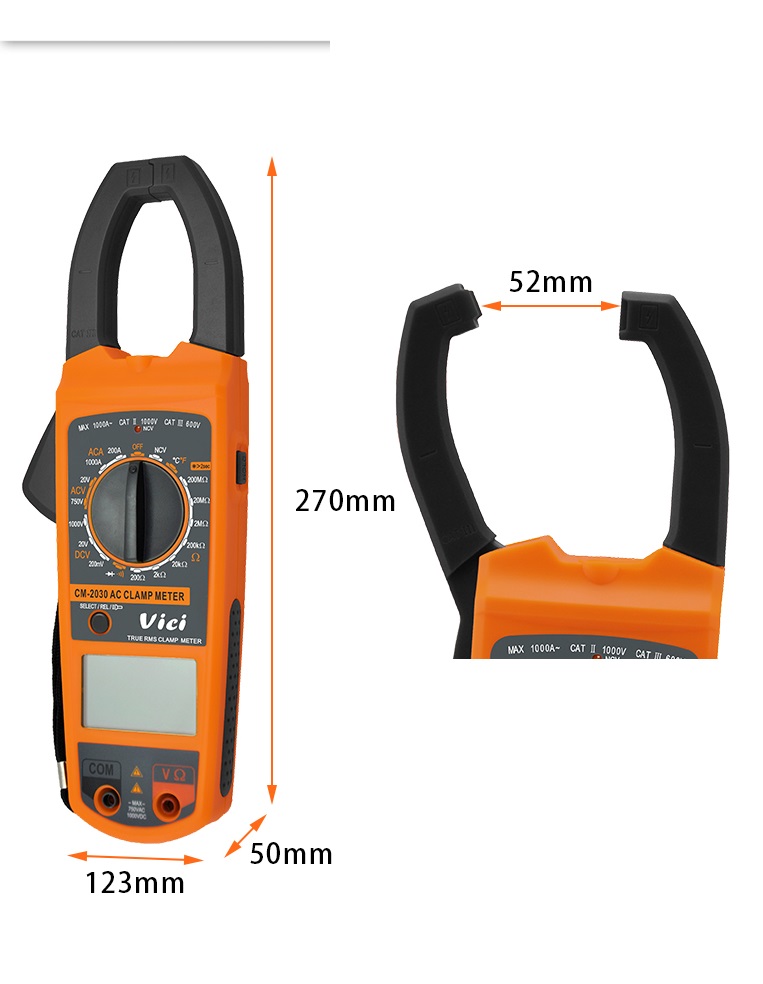

CM-2030 Manual ranging, 52mm clamp open, True RMS, NCV tests, Backlight, Clamp lighting function.
CM-2030 clamp meter, DC voltage, AC voltage, AC current, resistance, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power off and alarm functions.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
DCV |
200mV/20V/1000V |
+/- (0.5%+2) |
|
ACV |
20V/750V |
+/- (1.0%+5) |
|
ACA |
200A/1000A |
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M/200M ohm |
+/- (0.8%+1) |
|
Temperature |
-40℃ to +1000℃ / -40℉ to +1832℉ |
+/- (1.0%+5) |
Special Function:
|
Model |
CM-2030 |
|
NCV test |
YES |
|
Diode test |
YES |
|
Continuity test |
Less than 50 Ohm |
|
Low battery indicator |
Approx. less than 7.5 V |
|
Data hold |
YES |
|
Function protection |
YES |
|
Clamp light |
YES |
|
Backlight display |
optional |
|
Input impedance |
10M Ohm |
|
Sampling rate |
3 times/s |
|
AC frequency response |
Current 50-60Hz/ voltage 40-200Hz |
|

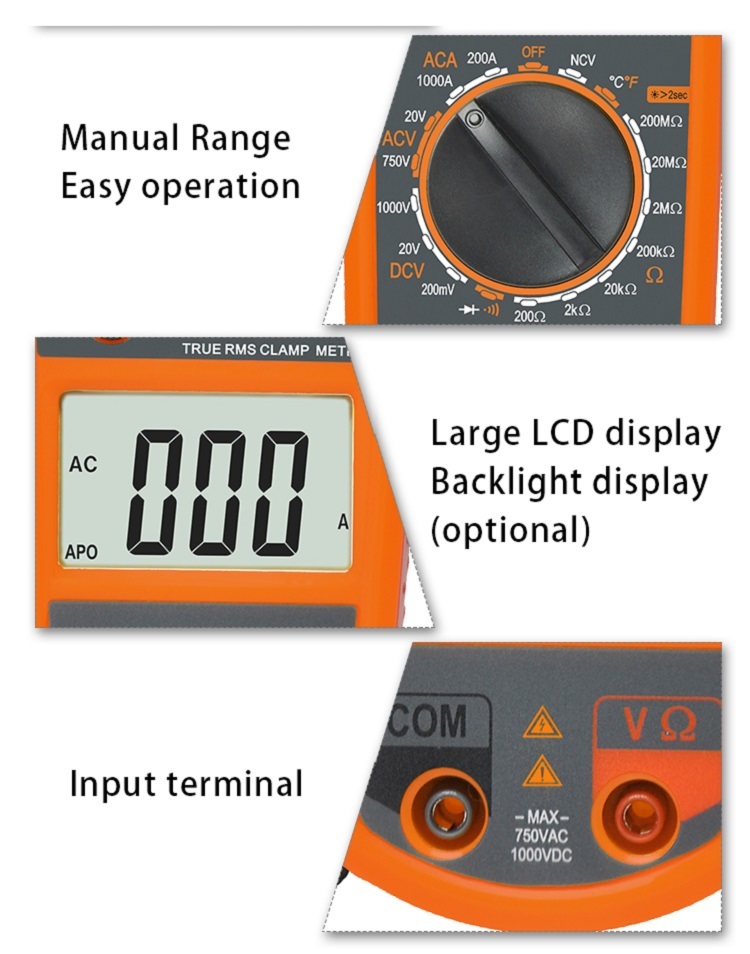

Operation method |
Manual range |
|
Max display |
1999 |
|
Clamp opens |
52mm |
|
Battery |
2PCS (1.5V) AAA |
