Technical specifications:
|
Basic function
|
Range
|
Accuracy
|
|
DCV
|
600mV/6V/60V/600V/1000V
|
±(0.5%+5)
|
|
ACV
|
6V/60V/600V/750V
|
±(0.8%+10)
|
|
DCA
|
6mA/60mA/600mA/6A/20A
|
±(1.0%+5)
|
|
ACA
|
6mA/60mA/600mA/6A/20A
|
±(1.5%+10)
|
|
Resistance
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
|
±(0.8%+2)
|
|
Inductance
|
6mH/60mH/600mH/6H/60H/100H
|
±(1.5%+5)
|
|
Capacitance
|
/60nF/600nF/6uF/60uF/600uF/6mF/60mF
|
±(2.5%+5)
|
|
Frequency
|
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
|
±(0.5%+4)
|
|
Insulation
|
2000MΩ for 1000V
|
±(4.0%+2)
|
|
Centigrade Temperature
|
-40℃～1000℃ /-40℉～1832℉
|
±(1.0%+5)
|
|
Special function
|

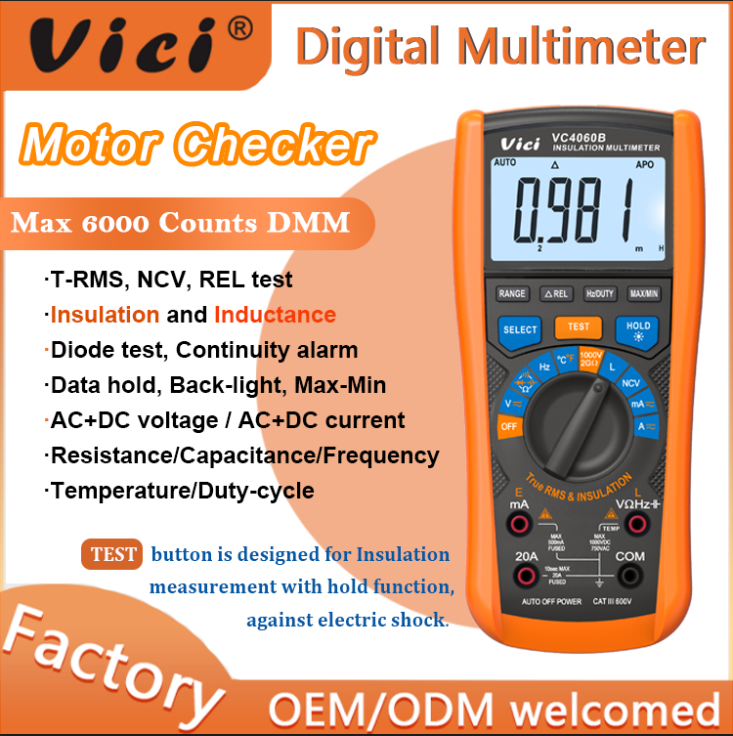

VC4060B
|
|
True RMS
|
√
|
|
NCV
|
√
|
|
Function Protect
|
√
|
|
Diode test
|
√
|
|
Continuity test
|
Warning sound when less than 50Ω
|
|
Duty cycle measuring
|
√
|
|
Data hold
|
√
|
|
Backlight display
|
√
|
|
Max-Min
|
MAX., MIN. value and difference value between MAX and MIN
|
|
Auto power off
|
Approx.15minutes
|
|
Low battery indication
|
Approx. less than 7.6V
|
|
Input impendence
|
10MΩ
|
|
Sampling rate
|
3times/s
|
|
AC frequency response
|
40Hz-2kHz
|
|
Operation way
|
Manual or auto range
|
|
Max. display
|
6000
|
|
LCD size
|
65×40mm
|
|
Power
|
6x1.5V AA battery
|
|
Power dissipation
|
Quiescent current approx. 6mA
|
General Info:
|
Color
|
Orange holster and Grey device
|
|
Weight
|
480g (including battery)
|
|
Meter size
|
200mm×92mm×50mm
|
|
Standard accessory
|
Test leads, battery, manual, TP01 temperature probes, handbag
|
|
Packing
|
Gift box
|
|
Quantity per carton
|
20pcs
|
|
Carton size
|
46.5*31.5*29.0cm |
