Selected products(0)

> <

< >

VC4060B+ Insulation Inductance Multimeter, True RMS test, NCV test, Data hold, Backlight, Torch lighting, Max/Min and the difference value between max and min.

VC4060B+ insulation multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Insulation Resistance, Inductance, Capacitance, Frequency, Non-contact voltage detecting, Duty-cycle, Temperature, Diode and Continuity tests; Designed with unit symbol, backlight display, torch lighting, data hold, auto ranging switch, auto power off and alarm functions.
6000 digits display

Add to cart Buy now

分享到

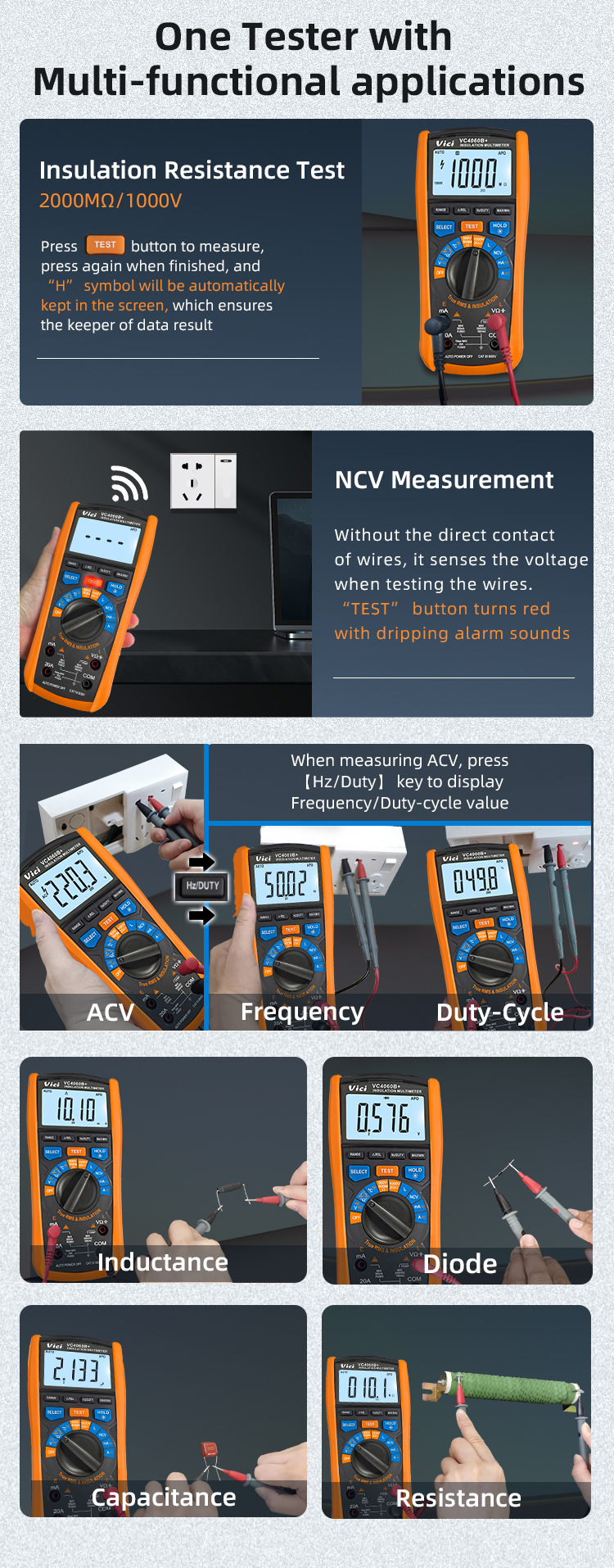

● Integrates electrical parameter measurement and insulation safety regulation measurement.

● T-RMS value measurement, NCV (Non-Contact Voltage) detection; Frequency/duty cycle and relative value measurement.

● Inductance measurement

● Maximum/minimum value display and data hold function.

● Backlight display, low voltage indication and automatic power-off function.

● For new energy vehicle repair, motor cables, electromechanical equipment, telecommunication equipment, installation of power facilities, and project acceptance, etc.

Technical specifications:

Basic function	Range	Accuracy
DCV	600mV/6V/60V/600V/1000V	±(0.5%+5)
ACV	6V/60V/600V/750V	±(0.8%+10)
DCA	6mA/60mA/600mA/6A/20A	±(1.0%+5)
ACA	6mA/60mA/600mA/6A/20A	±(1.5%+10)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+2)
Capacitance	60nF/600nF/6uF/60uF/600uF/6mF/60mF	±(2.5%+5)
Inductance	6mH/60mH/600mH/6H/60H/100H	±(1.5%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/50kHz (@ ACV range)	±(1.0%+3)
Insulation	500MΩ for 500V, 2GΩ for 1000V	±(4.0%+2)
Temperature	-40℃~1000℃ \| -40℉~1832℉	±(1.0%+5)

Special function:

Max. display	6000
Safety level	CAT. III 600V
True RMS	√
NCV	√
Function Protect	√
Diode test	√
Continuity test	Warning sound when less than 50Ω
Duty cycle measuring	√
Data hold	√
Backlight display	√
Max-Min	MAX., MIN. value and difference value between MAX and MIN
Auto power off	Approx.15minutes
Low battery indication	Approx. less than 7.6V
Input impendence	10MΩ
Sampling rate	3times/s
AC frequency response	40Hz-2kHz
Operation way	Manual or auto range
LCD size	65×40mm
Power	6x1.5V AA battery
Power dissipation	Quiescent current approx. 6mA

General Info:

Color	Orange holster and Grey device
Weight	480g (including battery)
Meter size	200mm×92mm×50mm
Standard accessory	TL98A test leads, TL1358 crocodile clips test leads, TP01 temperature probes, 6pcs 1.5V AA battery, English manual, Black handbag.
Packing	Gift box
Quantity per carton	20pcs
Carton size	46.531.529.0cm
GW per carton	17.0kg

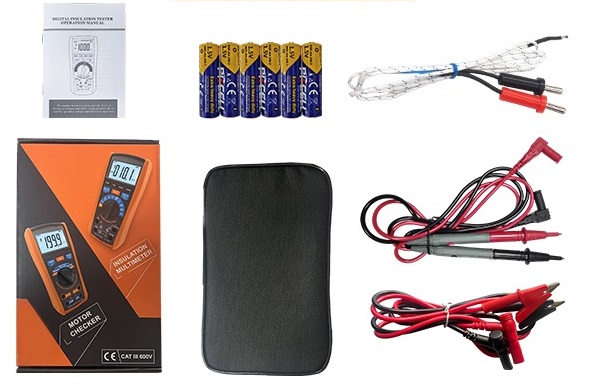

1pair TL98A test leads;

1pair TL1358 alligator clip test leads;

1pair TP01 temperature probes;

6pcs 1.5V AA batteries;

1pc English manual;

1pc neutral handbag;

1pc neutral color box.
