1. Insulation Resistance Test, True RMS, non-contact voltage detection, frequency/duty cycle, and data hold function;
2. New type holster, streamlined design, comfortable handle;
3. Large LCD display makes reading clear;
4. Strong antimagnetic and anti-interferential performance,Full function protection;
5. Auto power off when there is no measurement in 15 minutes;
6. Unit symbol display, easy to read; backlight display.

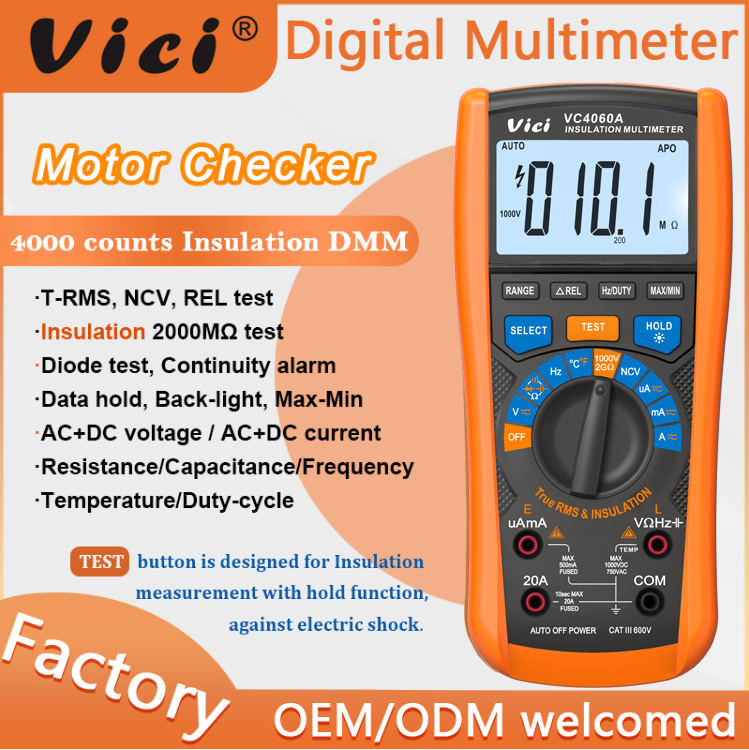

VC4060A Insulation DMM Motor Checker, True RMS test, NCV test, Data hold, Backlight, Torch lighting, Max/Min and the difference value between max and min.
VC4060A motor checker insulation multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Insulation Resistance, Capacitance, Frequency, Non-contact voltage detecting, Duty-cycle, Temperature, Diode and Continuity tests; Designed with unit symbol, backlight display, torch lighting, data hold, auto ranging switch, auto power off and alarm functions.
4000 digits display
|
Basic function |
Range |
Basic accuracy |
|
DCV |
400mV/4V/40V/400V/1000V |
±(0.5%+5) |
|
ACV |
4V/40V/400V/750V |
±(0.8%+10) |
|
DCA |
400uA/4000uA/40mA/400mA/4A/20A |
±(1.0%+5) |
|
ACA |
400uA/4000uA/40mA/400mA/4A/20A |
±(1.5%+10) |
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(0.8%+2) |
|
Capacitance |
40nF/400nF/4uF/40uF/400uF/4mF/40mF |
±(2.5%+5) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
|
Insulation |
2000MΩ for 1000V |
±(4.0%+2) |
|
Centigrade Temperature |
-40℃～1000℃/-40℉～1832℉ |
±(1.0%+5) |
|
Special function |
VC4060A |
|
True RMS |
√ |
|
NCV |
√ |
|
Function Protect |
√ |
|
Diode test |
√ |
|
Continuity test |
Warning sound when less than 50Ω |
|
Duty cycle measuring |
√ |
|
Data hold |
√ |
|
Backlight display |
√ |
|
Max-Min |
MAX., MIN. value and difference value between MAX and MIN |
|
Auto power off |
Approx.15minutes |
|
Low battery indication |
Approx. less than 7.6V |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation way |
Manual or auto range |
|
Max. display |
4000 |
|
LCD size |
65×40mm |
|
Power |
6x1.5V AA battery |
|
Power dissipation |
Quiescent current approx. 6mA |
General Info:
|
Color |
Orange holster and Grey device |
|
Weight |
400g (including battery) |
|
Meter size |
185x93x35mm |
|
Standard accessory |
Test leads, battery, manual, TP01 temperature probe |
|
Packing |
Gift box |
|
Quantity per carton |
20pcs |

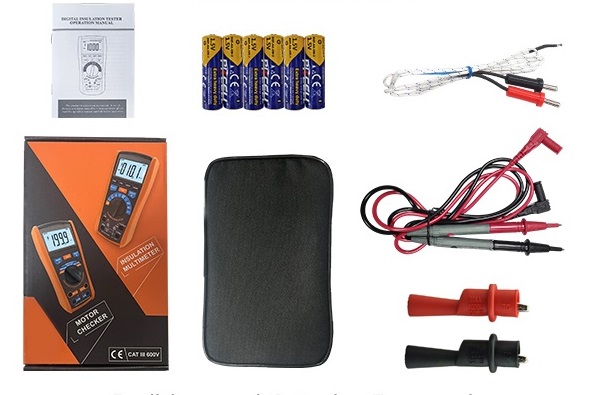

1pc English Manual;
6pcs 1.5V AA battery;
1pair Temperature probes;
1pc color box (neutral);
1pc handbag (neutral);
1pair test leads;
1pair alligator clips.
.jpg)
6pcs 1.5V AA battery;
1pair Temperature probes;
1pc color box (neutral);
1pc handbag (neutral);
1pair test leads;
1pair alligator clips.
